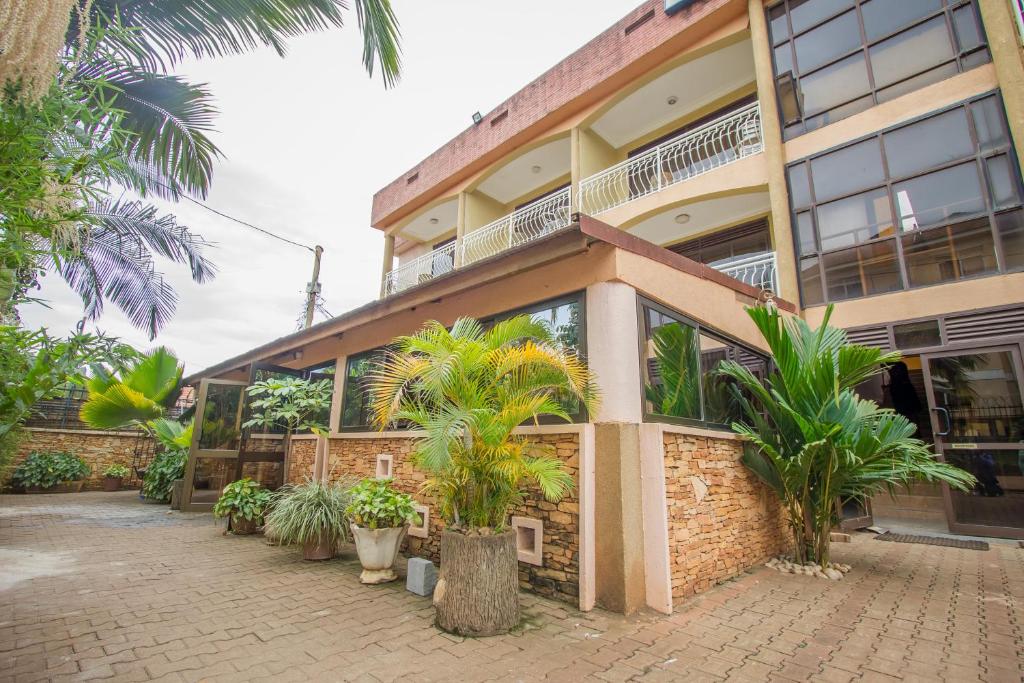

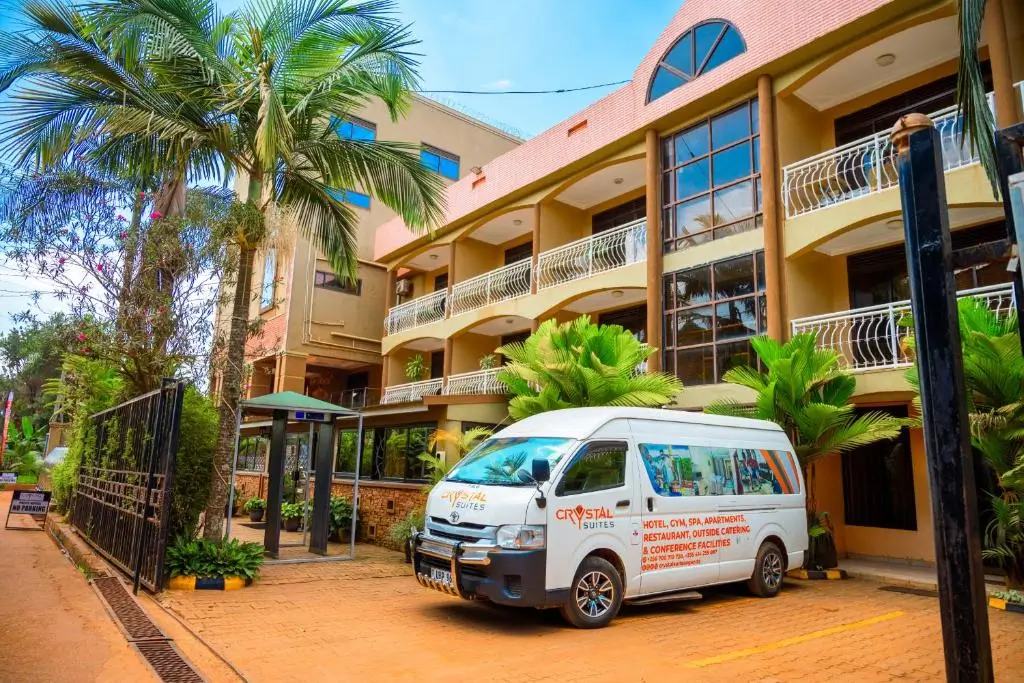

Crystal Apartments – Ntinda

Projects We’ve Worked On: Crystal Apartments – Ntinda

At Elan Energies Limited, our commitment to delivering exceptional electrical, CCTV, plumbing, and design services is reflected in every project we undertake. One standout project is the comprehensive systems installation and design at Crystal Apartments, located in the prime residential area of Ntinda, Kampala. This modern residential complex required a highly integrated, safe, and efficient infrastructure to meet the demands of its discerning residents.

Electrical Systems Installation

Modern Electrical Wiring and Power Distribution

Our electrical engineers employed THHN/THWN insulated copper wiring, ensuring high conductivity and heat resistance, suitable for both wet and dry environments. Each apartment was supplied via individual 63A, 3-phase distribution boards with residual current devices (RCD) and miniature circuit breakers (MCBs) for enhanced protection.

We also installed energy-efficient LED lighting using smart dimmers and motion sensors to optimize energy use in common areas. Electrical sockets are fitted with child-proof shutters to enhance safety.

Backup Power and Safety Features

• An automatic transfer switch (ATS) rated for 100kVA to transition power to an onsite diesel generator seamlessly.
• Provision for solar inverter integration with wiring conduits in place for future renewable energy upgrades.
• Comprehensive earthing system implemented with copper earth rods and a ground resistance of less than 5 ohms to safeguard against electrical faults.
• Installation of Type C and D surge protection devices (SPDs) on incoming power lines to shield against voltage spikes.

CCTV and Security Systems

Comprehensive Surveillance Installation

The security solution comprises 4K Ultra HD IP cameras with H.265 compression for efficient video storage and streaming. Cameras are equipped with wide dynamic range (WDR) and infrared night vision up to 30 meters.

The Network Video Recorder (NVR) has RAID 5 storage with 24TB capacity, ensuring video redundancy and preventing data loss. The system supports ONVIF protocol, allowing integration with third-party devices and future scalability.

Remote access is enabled via end-to-end encrypted mobile applications, with role-based access controls for residents and security staff.

Integrated Security Features

• Biometric fingerprint scanners installed at main entrances.
• Proximity card access systems with encrypted RFID technology.
• Intruder alarms integrated with the CCTV system, featuring panic buttons in common areas.
• Emergency lighting and exit signage linked to backup power for compliance with safety standards.

Plumbing Systems Engineering

Reliable Water Supply and Drainage

We used PEX piping for hot and cold water supply, chosen for its flexibility and resistance to corrosion and scaling. The water distribution system incorporates pressure-reducing valves (PRVs) to maintain consistent flow and protect piping.

Wastewater is handled via PVC drainage pipes with proper venting to prevent sewer gas buildup. Rainwater harvesting tanks of 10,000 liters were installed, connected to filtration units for non-potable uses such as gardening and cleaning.

Sanitary Fixtures and Maintenance Provisions

High-quality water-saving dual flush toilets and sensor-activated faucets were installed to conserve water. Plumbing chases were designed for easy access, allowing maintenance without damaging walls or finishes.

Design and Engineering Consultation

Tailored Electrical and Plumbing Layouts

The electrical and plumbing layouts were generated using AutoCAD MEP software, allowing precise coordination with architectural plans and avoiding clashes with structural elements.

Sustainable and Future-Ready Solutions

We specified components with Energy Star certification and planned for smart metering systems to enable residents to monitor consumption and optimize usage.

Project Management and Execution

Our multidisciplinary project team employed PRINCE2 project management principles to maintain timelines, mitigate risks, and ensure quality. Onsite engineers conducted daily inspections, using digital checklists and progress tracking software.

Impact and Client Benefits

The infrastructure we delivered at Crystal Apartments enhanced safety, convenience, and sustainability, raising the property’s market value and residents’ satisfaction.

Client Testimonials

“Elan Energies Limited demonstrated unmatched professionalism and technical expertise throughout the Crystal Apartments project. Their attention to detail in electrical and plumbing systems has given us confidence in the safety and efficiency of our property.”

“The security system installed by Elan Energies is top-notch. The CCTV and access controls offer peace of mind for all residents. Their team was responsive and thorough from design to completion.”

“Working with Elan Energies Limited was seamless. Their team’s knowledge of sustainable systems and integration with the building’s design was impressive. They delivered on time and within budget.”

Contact Elan Energies Limited today to discuss how we can power, protect, and design your residential or commercial projects with unmatched professionalism and technical excellence.
